Nichicon UPS1V151MPD is a 150uF aluminum electrolytic capacitor with a 35V voltage rating and 20% tolerance. It has a radial package with a 3.5mm lead pitch and is designed for through hole mounting. The capacitor operates within a temperature range of -55°C to 105°C and is RoHS compliant.
PackageRadial
Capacitance150uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS1V151MPD technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Height | 11.5mm |
| Impedance | 280mR |
| Lead Pitch | 3.5mm |
| Leakage Current | 157.5uA |
| Length | 11.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 410mA |
| RoHS Compliant | Yes |
| Series | UPS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPS1V151MPD Datasheet
Download the complete datasheet for Nichicon UPS1V151MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

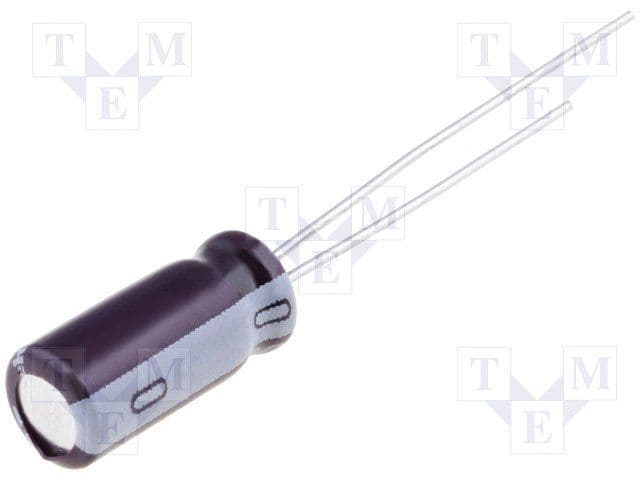

Product Images
