Aluminum electrolytic capacitor, 1µF capacitance, 100V DC rated voltage, and 20% tolerance. Features a radial package with 2mm lead pitch, 5mm diameter, and 11mm height, suitable for through-hole mounting. Offers 2000 hours of life at 105°C maximum operating temperature, with 30mA ripple current and 4µA leakage current. Impedance is 20 Ohms.
PackageRadial
Voltage100V
Capacitance1uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPS2A010MDD technical specifications.
General
Capacitance
1uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
20R
Lead Diameter
0.5mm
Lead Pitch
2mm
Leakage Current
4uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
30mA
Ripple Current (AC)
30mA
RoHS Compliant
Yes
Series
PS
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS2A010MDD Datasheet
Download the complete datasheet for Nichicon UPS2A010MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

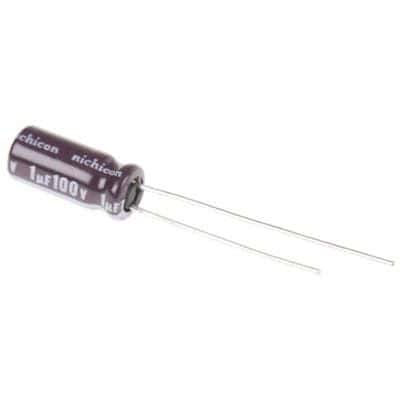

Product Images
