Nichicon
UPS2A100MED1TD
Cap Aluminum Lytic 10uF 100V 20% (6.3 X 11mm) Radial 2.5mm 130mA 2000h 105°C Ammo
PackageRadial
Capacitance10uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPS2A100MED1TD technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Diameter
6.3mm
Dielectric Material
Aluminium
Height
11mm
Impedance
1.8R
Lead Pitch
2.5mm
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
130mA
RoHS Compliant
Yes
Series
UPS
Termination
Radial
Tolerance
20%
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPS2A100MED1TD Datasheet
Download the complete datasheet for Nichicon UPS2A100MED1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

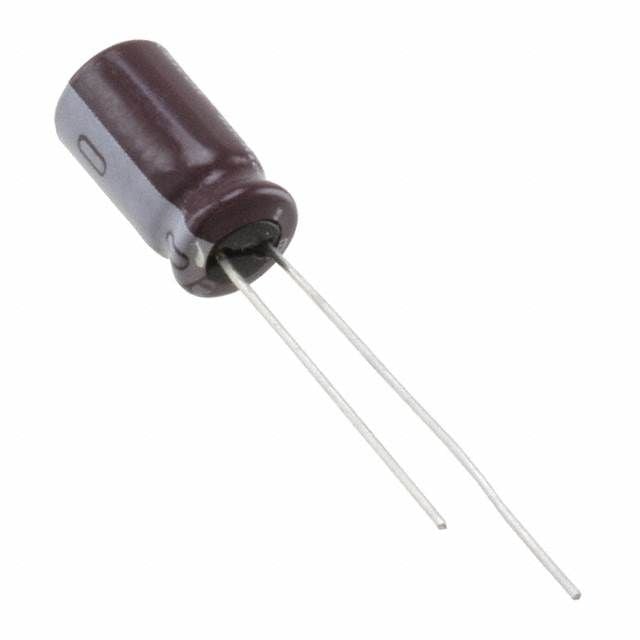

Product Images
