Standard aluminum electrolytic capacitor with 100µF capacitance and 100V DC rating. Features 20% tolerance, 580mA ripple current, and 3000 hours of life at 105°C. This radial component has a 5mm lead pitch, 12.5mm diameter, and 20mm height, with a leakage current of 300µA and impedance of 180mΩ. Designed for through-hole PCB mounting, it operates from -55°C to 105°C and is RoHS compliant.
PackageRadial
Voltage100V
Capacitance100uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPS2A101MHD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.08% |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 180mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 300uA |
| Length | 20mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Polarity | Polar |
| Reach SVHC Compliant | No |
| Ripple Current | 580mA |
| Ripple Current (AC) | 580mA |
| RoHS Compliant | Yes |
| Series | PS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPS2A101MHD Datasheet
Download the complete datasheet for Nichicon UPS2A101MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

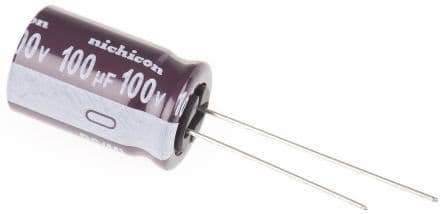

Product Images
