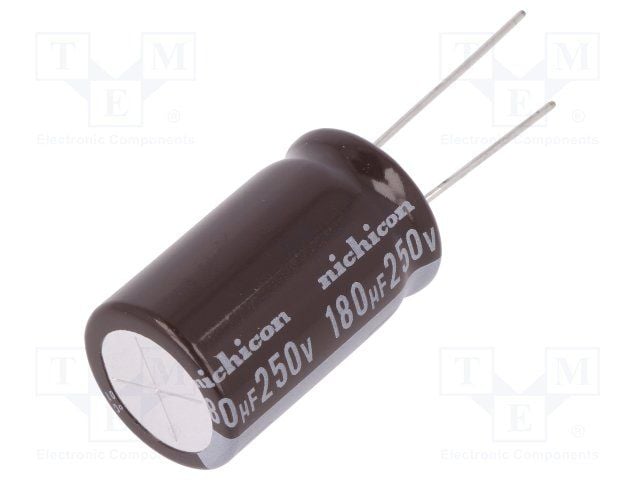

The Nichicon UPT2E181MHD6 is a 180uF radial aluminum electrolytic capacitor with a 250V voltage rating and 20% tolerance. It is designed for general-purpose applications and has a maximum operating temperature of 105°C. The capacitor is available in bulk packaging with 50 units per package and is RoHS compliant. It has a leakage current of 2.71mA and a ripple current of 720mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPT2E181MHD6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UPT2E181MHD6 technical specifications.
| Capacitance | 180uF |
| Package/Case | Radial |
| Features | General Purpose |
| Height - Seated (Max) | 1.299inch |
| Lead Pitch | 0.295inch |
| Leakage Current | 2.71mA |
| Length | 31.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ripple Current | 720mA |
| RoHS Compliant | Yes |
| Series | PT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
