Technical Specifications
Nichicon UPT2P101MHD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Dissipation Factor | 0.12% |
| Features | General Purpose |
| Height - Seated (Max) | 1.299inch |
| Lead Free | Lead Free |
| Lead Pitch | 0.197inch |
| Leakage Current | 1.33mA |
| Length | 31.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 430mA |
| RoHS Compliant | Yes |
| Series | PT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 220V |
| DC Rated Voltage | 220V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPT2P101MHD Datasheet
Download the complete datasheet for Nichicon UPT2P101MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

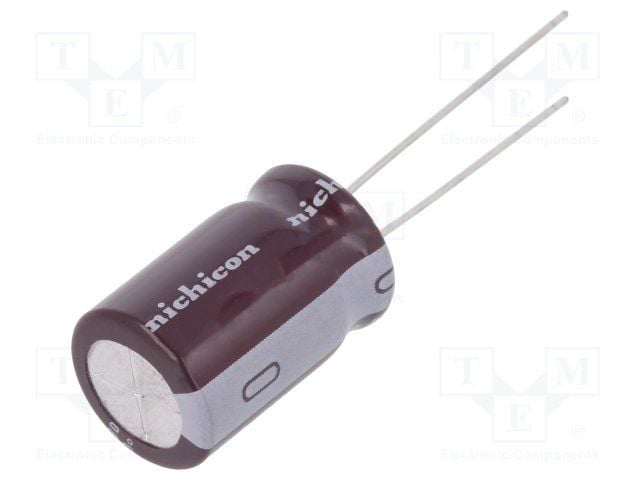

Product Images
