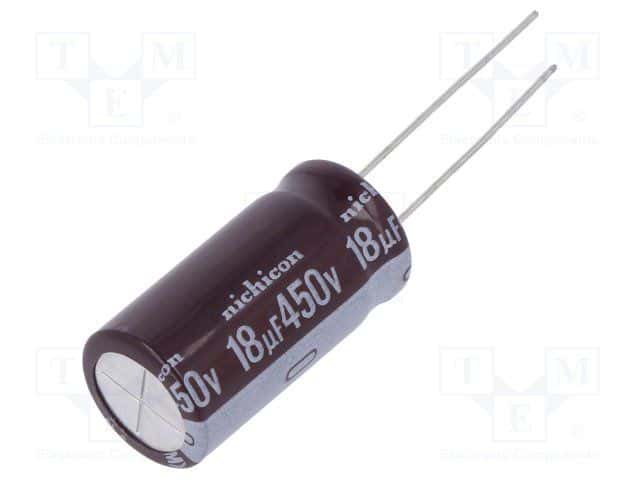

The Nichicon UPT2W180MHD is a 18uF aluminum electrolytic capacitor with a voltage rating of 450V. It has a radial package and is designed for through-hole mounting. The capacitor is rated for operation between -25°C and 105°C. It meets RoHS compliance requirements and is available in a bulk packaging quantity of 100. The capacitor has a leakage current of 496uA and a ripple current rating of 180mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPT2W180MHD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UPT2W180MHD technical specifications.
| Capacitance | 18uF |
| Package/Case | Radial |
| Height - Seated (Max) | 1.043inch |
| Lead Pitch | 0.197inch |
| Leakage Current | 496uA |
| Length | 25mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ripple Current | 180mA |
| RoHS Compliant | Yes |
| Series | PT |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 450V |
| RoHS | Compliant |
