PackageRadial
Capacitance22uF
Voltage Rating420V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPTW6220MHD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Lead Pitch
5mm
Leakage Current
564.4uA
Length
25mm
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Ripple Current
200mA
RoHS Compliant
Yes
Series
UPT
Termination
Radial
Tolerance
20%
Voltage Rating
420V
DC Rated Voltage
420V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPTW6220MHD Datasheet
Download the complete datasheet for Nichicon UPTW6220MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

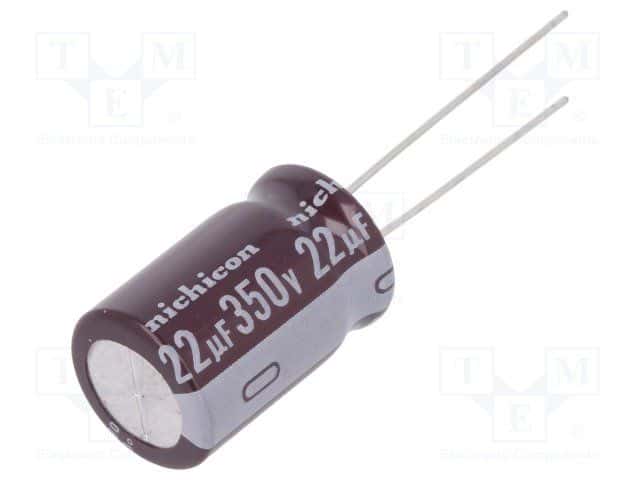

Product Images
