Aluminum electrolytic capacitor with 120µF capacitance and 6.3V voltage rating. Features 20% tolerance, 175mA ripple current, and 5000-hour life at 105°C. Radial package measures 5mm in diameter and 11mm in height with a 2mm lead pitch. Through-hole mounting for PCB applications.
PackageRadial
Voltage6.3V
Capacitance120uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UPV0J121MFD technical specifications.
General
Capacitance
120uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
1.1R
Lead Diameter
0.5mm
Lead Pitch
2mm
Leakage Current
22.68uA
Length
11mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
175mA
RoHS Compliant
Yes
Series
PV
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV0J121MFD Datasheet
Download the complete datasheet for Nichicon UPV0J121MFD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

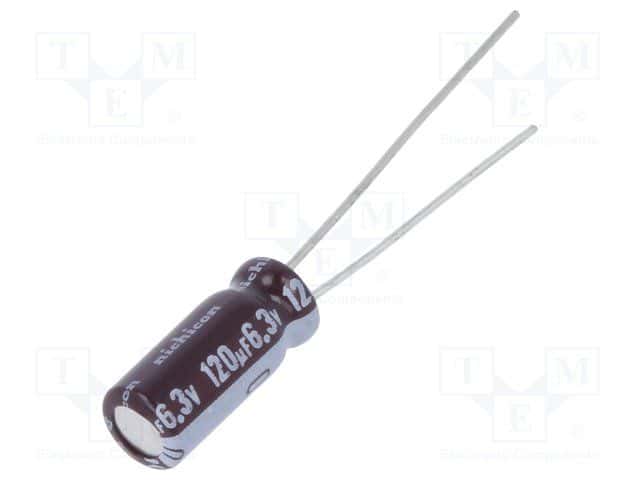

Product Images
