Nichicon
UPV0J271MGD
Cap Aluminum Lytic 270uF 6.3V 20% (8 X 11.5mm) Radial 3.5mm 370mA 5000h 105°C Bulk
PackageRadial
Capacitance270uF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV0J271MGD technical specifications.
General
Capacitance
270uF
Package/Case
Radial
Diameter
8mm
Height
11.5mm
Height - Seated (Max)
0.512inch
Impedance
410mR
Lead Pitch
3.5mm
Leakage Current
51.03uA
Length
11.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
370mA
RoHS Compliant
Yes
Series
PV
Termination
Radial
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV0J271MGD Datasheet
Download the complete datasheet for Nichicon UPV0J271MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

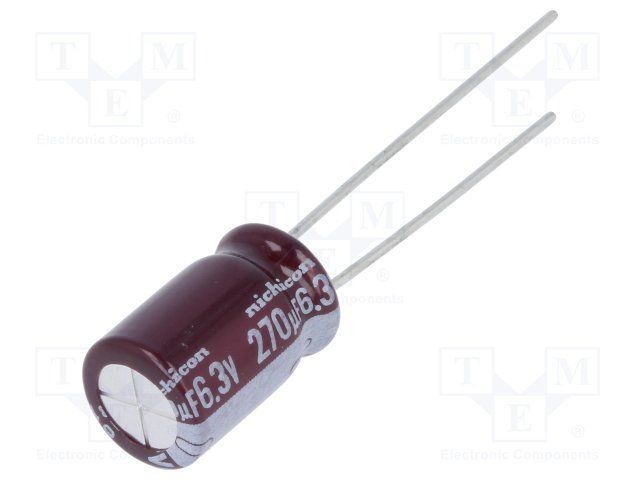

Product Images
