Nichicon
UPV0J331MGD
Cap Aluminum Lytic 330uF 6.3V 20% (8 X 11.5mm) Radial 3.5mm 405mA 5000h 105°C Bulk
PackageRadial
Capacitance330uF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV0J331MGD technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Diameter
8mm
Height
11.5mm
Impedance
340mR
Lead Pitch
3.5mm
Leakage Current
62.37uA
Length
11mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
405mA
RoHS Compliant
Yes
Series
UPV
Termination
Radial
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV0J331MGD Datasheet
Download the complete datasheet for Nichicon UPV0J331MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

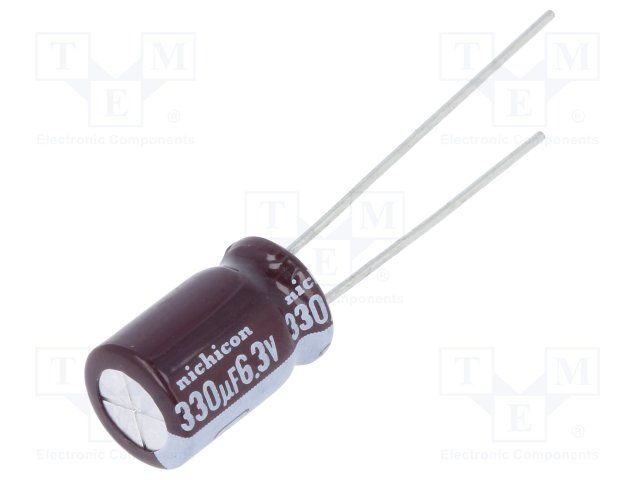

Product Images
