Nichicon
UPV1A151MGD
Cap Aluminum Lytic 150uF 10V 20% (6.3 X 11mm) Radial 2.5mm 265mA 5000h 105°C Bulk
PackageRadial
Capacitance150uF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1A151MGD technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Diameter
6.3mm
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
600mR
Lead Pitch
2.5mm
Leakage Current
45uA
Length
11mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
265mA
RoHS Compliant
Yes
Series
PV
Termination
Radial
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1A151MGD Datasheet
Download the complete datasheet for Nichicon UPV1A151MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

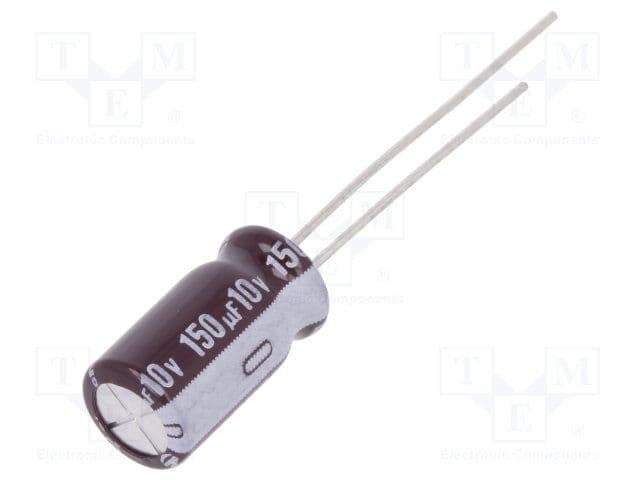

Product Images
