Nichicon
UPV1A221MGD
Cap Aluminum Lytic 220uF 10V 20% (8 X 11.5mm) Radial 3.5mm 370mA 5000h 105°C Bulk
PackageRadial
Capacitance220uF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1A221MGD technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Diameter
8mm
Height
11.5mm
Impedance
410mR
Lead Pitch
3.5mm
Leakage Current
66uA
Length
11.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
370mA
RoHS Compliant
Yes
Series
UPV
Termination
Radial
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1A221MGD Datasheet
Download the complete datasheet for Nichicon UPV1A221MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

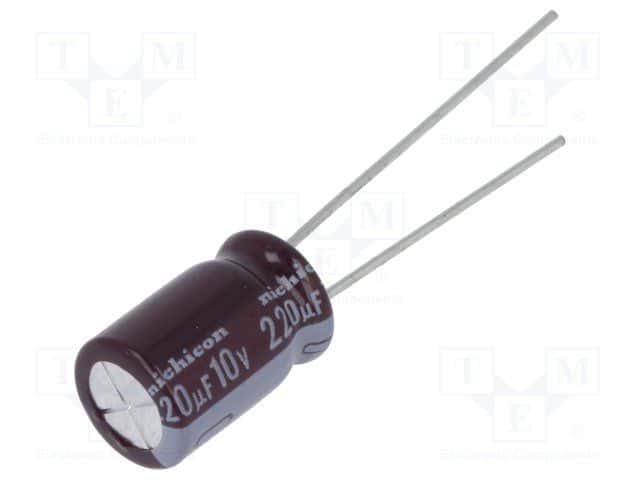

Product Images
