Standard aluminum electrolytic capacitor, 330µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a radial package with 3.5mm lead pitch, 8mm diameter, and 11.5mm height. Offers 460mA ripple current, 270mΩ impedance, and 99µA leakage current. Rated for 5000 hours at 105°C, with an operating temperature range of -55°C to 105°C. Through-hole mounting, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UPV1A331MGD technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Height | 11.5mm |
| Height - Seated (Max) | 0.512inch |
| Impedance | 270mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 99uA |
| Length | 11.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 460mA |
| RoHS Compliant | Yes |
| Series | PV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPV1A331MGD Datasheet
Download the complete datasheet for Nichicon UPV1A331MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

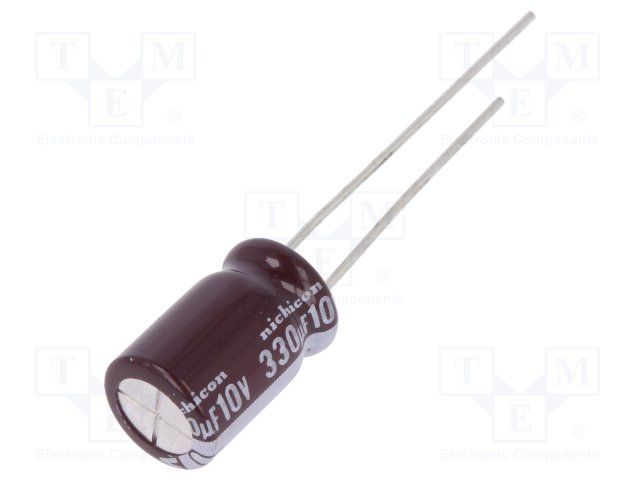

Product Images
