Technical Specifications
Nichicon UPV1E390MFD1TD technical specifications.
General
| Capacitance | 39uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Height | 11mm |
| Impedance | 1.1R |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | UPV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPV1E390MFD1TD Datasheet
Download the complete datasheet for Nichicon UPV1E390MFD1TD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

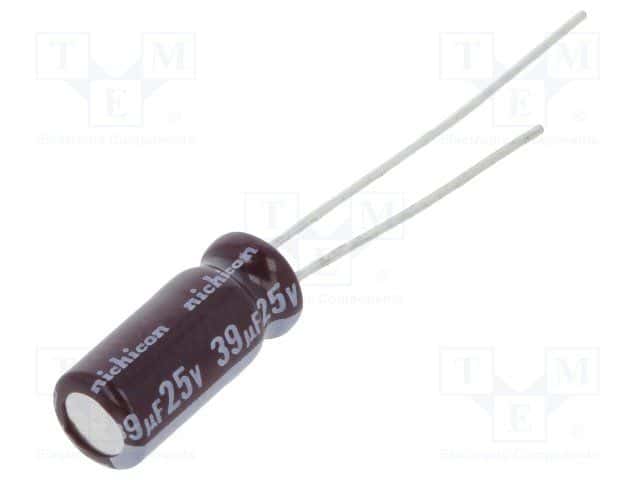

Product Images
