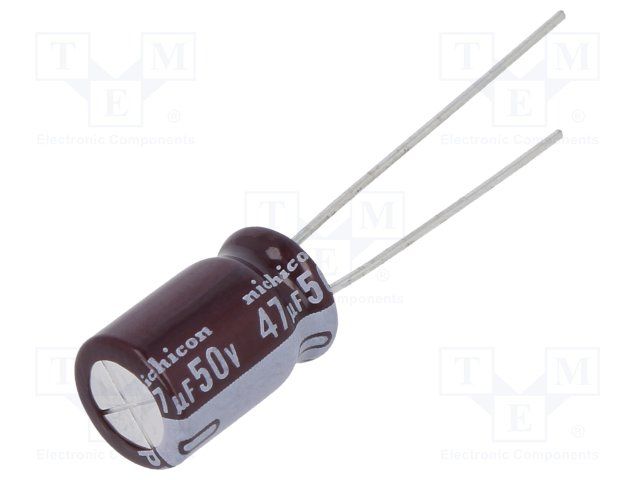

The Nichicon UPV1H470MGD1TD is a 47uF aluminum electrolytic capacitor with a voltage rating of 50V. It features a radial package with a through hole mount and is packaged in cut tape. The capacitor has an impedance of 420mR and operates over a temperature range of -55°C to 105°C. It is compliant with RoHS regulations and is part of the UPV series with a 20% tolerance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPV1H470MGD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UPV1H470MGD1TD technical specifications.
| Capacitance | 47uF |
| Package/Case | Radial |
| Impedance | 420mR |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | UPV |
| Tolerance | 20% |
| Voltage Rating | 50V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon UPV1H470MGD1TD to view detailed technical specifications.
