Nichicon
UPV1H6R8MFD1TD
Cap Aluminum Lytic 6.8uF 50V 20% (5 X 11mm) Radial 2.5mm 91mA 5000h 105°C Ammo
PackageRadial
Capacitance6.8uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1H6R8MFD1TD technical specifications.
General
Capacitance
6.8uF
Package/Case
Radial
Diameter
5mm
Dielectric Material
Aluminium
Height
11mm
Height - Seated (Max)
0.492inch
Impedance
2.5R
Lead Pitch
0.079inch
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1
Packaging
Cut Tape
Ripple Current
91mA
RoHS Compliant
Yes
Series
PV
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1H6R8MFD1TD Datasheet
Download the complete datasheet for Nichicon UPV1H6R8MFD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

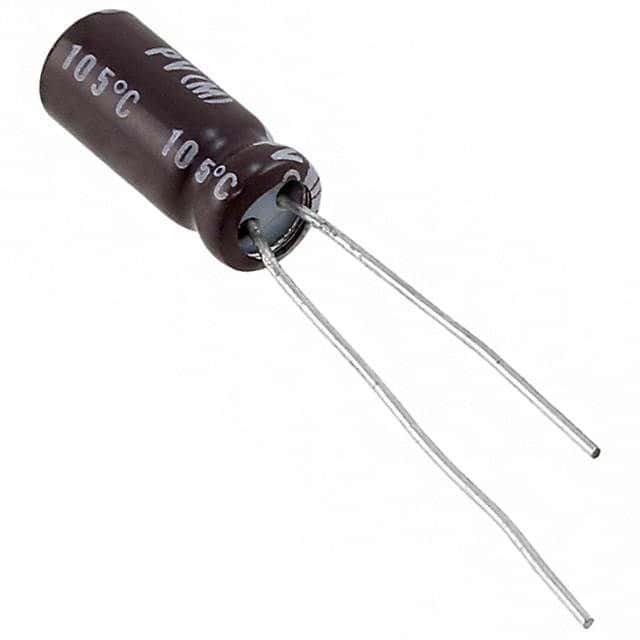

Product Images
