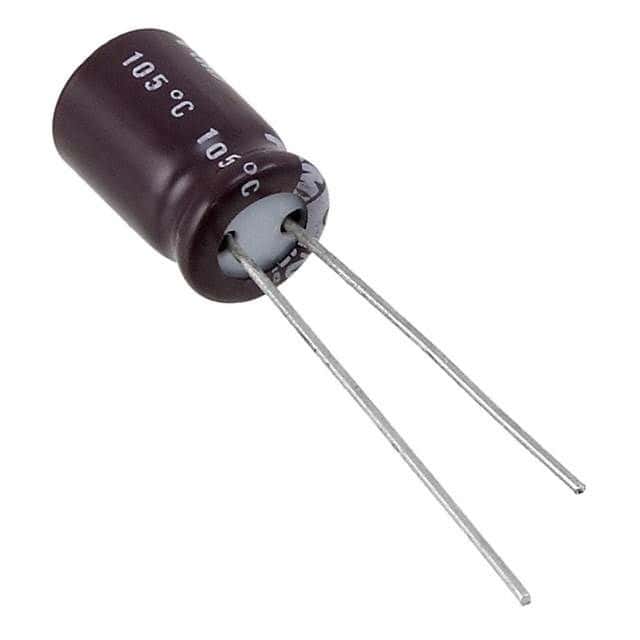

The Nichicon UPV1V101MGD1TD is a 100uF aluminum electrolytic capacitor with a 35V voltage rating and 20% tolerance. It features an impedance of 270mR and a maximum operating temperature of 105°C. The capacitor is available in a radial package with a diameter of 6.3mm and a height of 0.512inch when seated. It is RoHS compliant and suitable for use in through-hole applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UPV1V101MGD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon UPV1V101MGD1TD technical specifications.
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Height - Seated (Max) | 0.512inch |
| Impedance | 270mR |
| Lead Pitch | 0.138inch |
| Length | 11mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 460mA |
| RoHS Compliant | Yes |
| Series | PV |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| RoHS | Compliant |
