PackageRadial
Capacitance82uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPV1V820MGD technical specifications.
General
Capacitance
82uF
Package/Case
Radial
Diameter
8mm
Height
11.5mm
Impedance
320mR
Lead Pitch
3.5mm
Leakage Current
86.1uA
Length
11.5mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
415mA
RoHS Compliant
Yes
Series
UPV
Termination
Radial
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPV1V820MGD Datasheet
Download the complete datasheet for Nichicon UPV1V820MGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

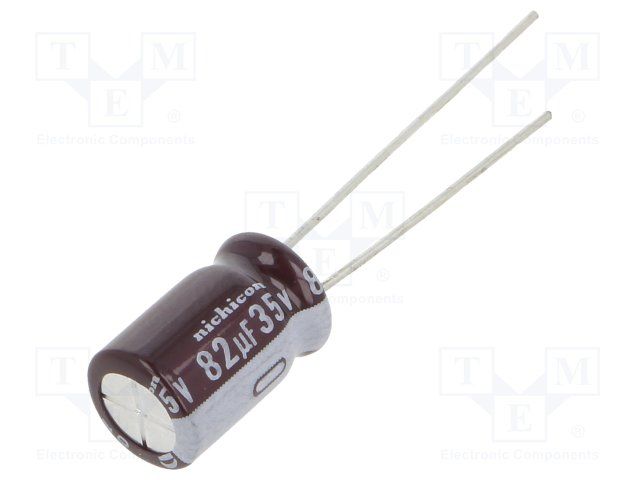

Product Images
