Aluminum electrolytic capacitor with 10mF capacitance and 6.3V DC rated voltage. Features a 20% tolerance, 16mm diameter, and 31.5mm height in a radial package. Offers 3.15A ripple current, 1.89mA leakage current, and 16mΩ impedance. Designed for through-hole PCB mounting, operating from -55°C to 105°C with an 8000-hour life rating.
PackageRadial
Voltage6.3V
Capacitance10mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UPW0J103MHD technical specifications.
General
Capacitance
10mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Dissipation Factor
0.22%
Height
31.5mm
Impedance
16mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
1.89mA
Length
31.5mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
3.15A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW0J103MHD Datasheet
Download the complete datasheet for Nichicon UPW0J103MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

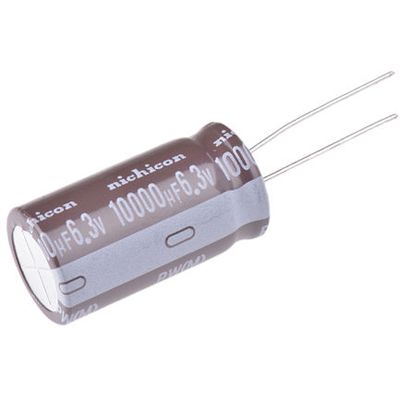

Product Images
