Standard aluminum electrolytic capacitor with 4.7mF capacitance and 6.3V DC rated voltage. Features 20% tolerance, 50mR ESR, and 25mR impedance. Designed for through-hole PCB mounting with a 5mm lead pitch and 0.6mm lead diameter. Offers a ripple current of 2.31A and a rated life of 7000 hours at 105°C. Dimensions are 12.5mm diameter and 31.5mm height.
PackageRadial
Voltage6.3V
Capacitance4.7mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UPW0J472MHD6 technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.22%
ESR (Equivalent Series Resistance)
50mR
Height
31.5mm
Height - Seated (Max)
1.24inch
Impedance
25mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
888.3uA
Length
31.5mm
Life (Hours)
7000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.31A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW0J472MHD6 Datasheet
Download the complete datasheet for Nichicon UPW0J472MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

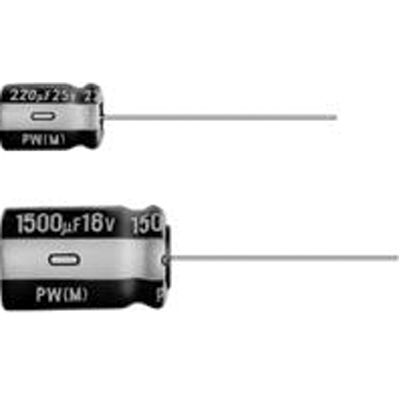

Product Images
