Aluminum electrolytic capacitor with 22µF capacitance and 16V DC rated voltage. Features a 20% tolerance, 180mA ripple current, and low ESR of 2.4Ω. Designed for through-hole PCB mounting with a 2mm lead pitch and 5mm diameter. Operates from -55°C to 105°C with a 2000-hour life expectancy.
PackageRadial
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UPW1C220MDD technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
ESR (Equivalent Series Resistance)
2.4R
Height
11mm
Impedance
600mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2mm
Leakage Current
10.56uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
180mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C220MDD Datasheet
Download the complete datasheet for Nichicon UPW1C220MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

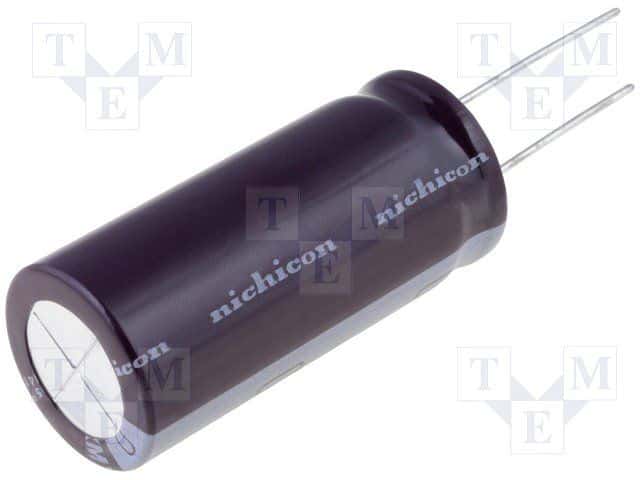

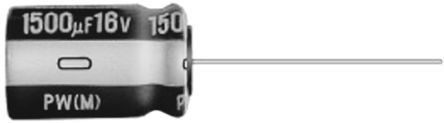

Product Images
