Aluminum electrolytic capacitor, 470µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a radial package with 8mm diameter, 15mm height, and 5mm lead pitch. Offers 170mΩ ESR, 85mΩ impedance, and 730mA ripple current. Operates from -55°C to 105°C with a 5000-hour life expectancy. Through-hole mounting for PCB applications.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UPW1C471MPD6 technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
ESR (Equivalent Series Resistance)
170mR
Height
15mm
Impedance
85mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
225.6uA
Length
15mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
730mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1C471MPD6 Datasheet
Download the complete datasheet for Nichicon UPW1C471MPD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

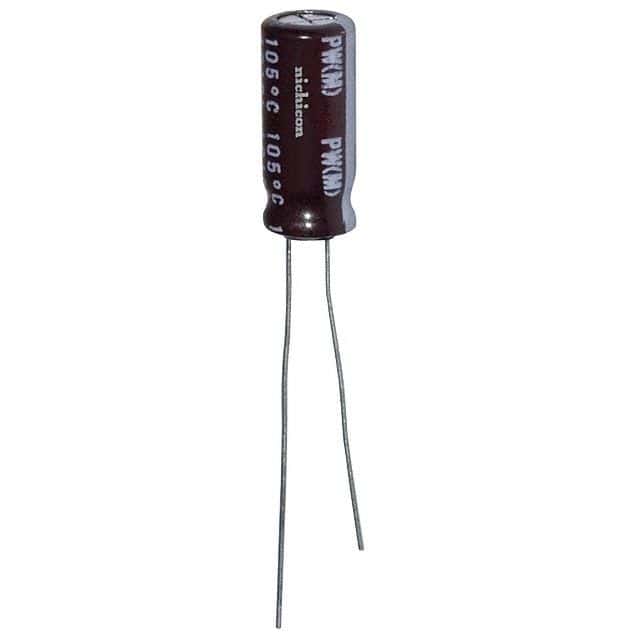

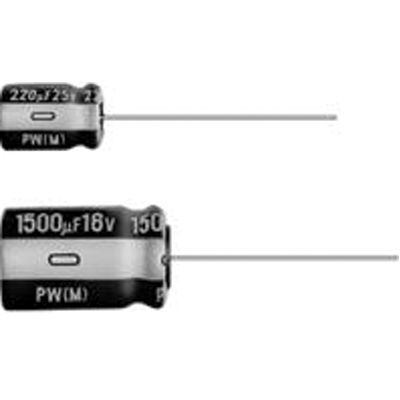

Product Images
