100µF, 25V polarized aluminum electrolytic capacitor with radial leads for through-hole PCB mounting. Features 20% tolerance, 500mΩ ESR, 250mΩ impedance, and 75µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating and 290mA ripple current. RoHS compliant.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPW1E101MED technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
ESR (Equivalent Series Resistance)
500mR
Height
11mm
Impedance
250mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Leakage Current
75uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
290mA
Ripple Current (AC)
290mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1E101MED Datasheet
Download the complete datasheet for Nichicon UPW1E101MED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

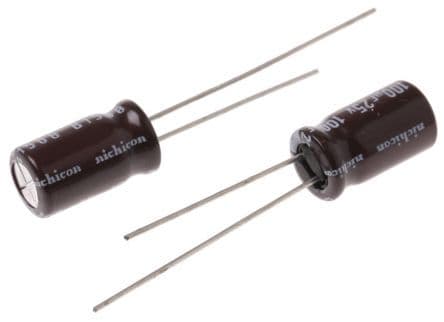

Product Images
