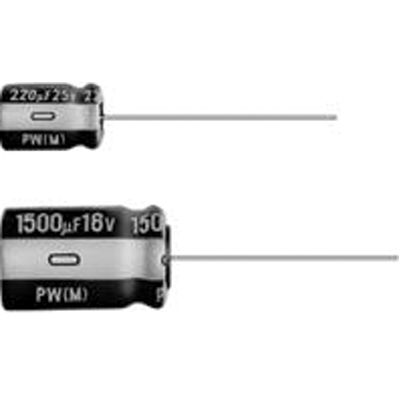

22µF, 25V radial aluminum electrolytic capacitor with 20% tolerance. Features 2mm lead pitch, 5mm diameter, and 7mm height, suitable for through-hole PCB mounting. Offers 120mA ripple current, 2.4Ω ESR, and 950mΩ impedance. Operates from -55°C to 105°C with a 2000-hour life rating. Lead-free and RoHS compliant.
PackageRadial
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPW1E220MDD6 technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
ESR (Equivalent Series Resistance)
2.4R
Height
7mm
Height - Seated (Max)
0.276inch
Impedance
950mR
Lead Diameter
0.45mm
Lead Free
Lead Free
Lead Pitch
2mm
Leakage Current
16.5uA
Length
7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
120mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
