Aluminum electrolytic capacitor, 22µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a radial package with 2mm lead pitch, 5mm diameter, and 7mm height. Operates from -55°C to 105°C with a ripple current of 36mA and ESR of 2.4Ω. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Capacitance22uF
Voltage Rating25V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1E220MDD6TP technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 2.4R |
| Height | 7mm |
| Height - Seated (Max) | 0.315inch |
| Impedance | 950mR |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Length | 11mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 36mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW1E220MDD6TP Datasheet
Download the complete datasheet for Nichicon UPW1E220MDD6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

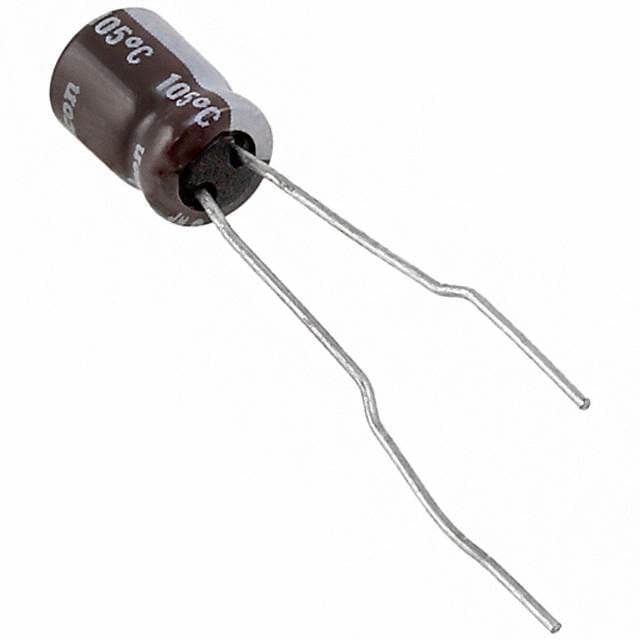

Product Images
