Aluminum electrolytic capacitor with 2.2mF capacitance and 25V DC rating. Features 20% tolerance, 56mΩ ESR, and 2.49A ripple current capability. Designed for through-hole mounting with a 7.5mm lead pitch and radial termination. Operates from -55°C to 105°C with an 8000-hour lifespan. Dimensions are 18mm diameter and 20mm height.
PackageRadial
Voltage25V
Capacitance2.2mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UPW1E222MHD6 technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Construction
RADIAL
Diameter
18mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
ESR (Equivalent Series Resistance)
56mR
Height
20mm
Height - Seated (Max)
0.787inch
Impedance
28mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Leakage Current
1.65mA
Length
20mm
Life (Hours)
8000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.49A
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1E222MHD6 Datasheet
Download the complete datasheet for Nichicon UPW1E222MHD6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

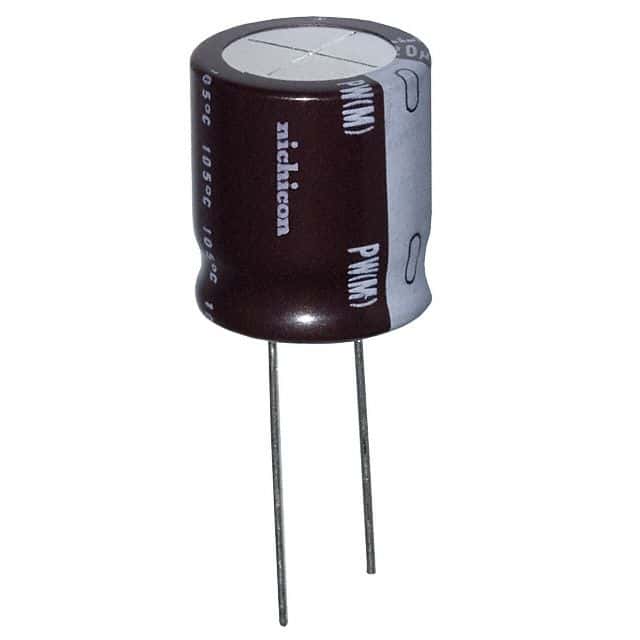

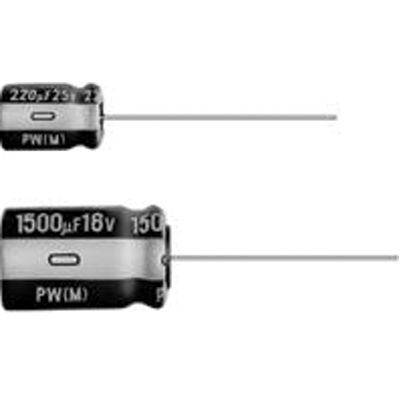

Product Images
