Aluminum electrolytic capacitor, 1µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 5mm diameter, 11mm height, and 2mm lead pitch for radial mounting. Offers 2000 hours of life at 105°C, 40mA ripple current, 4µA leakage current, and 7Ω ESR. Lead-free and RoHS compliant.
PackageRadial
Voltage50V
Capacitance1uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UPW1H010MDD technical specifications.
General
Capacitance
1uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.1%
ESR (Equivalent Series Resistance)
7R
Height
11mm
Height - Seated (Max)
0.433inch
Impedance
3.5R
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2mm
Leakage Current
4uA
Length
11mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
40mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW1H010MDD Datasheet
Download the complete datasheet for Nichicon UPW1H010MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

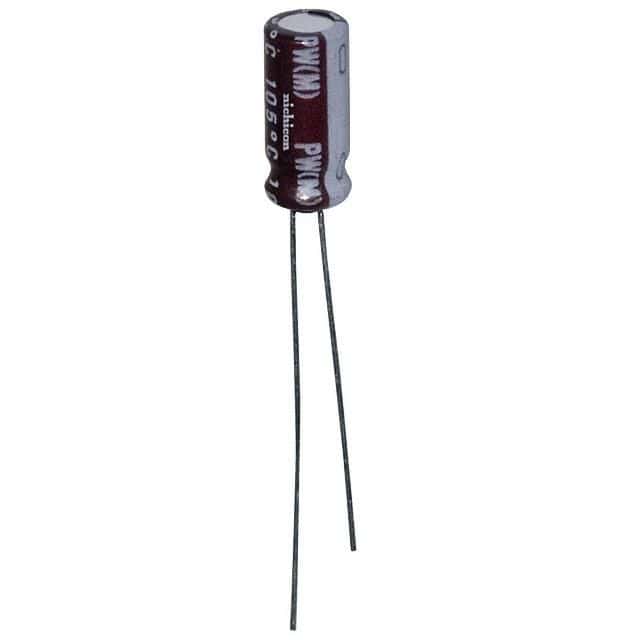

Product Images
