680µF, 63V radial aluminum electrolytic capacitor with 20% tolerance. Features 94mΩ ESR, 50mΩ impedance, and 1.62A ripple current. Designed for through-hole mounting with a 7.5mm lead pitch, measuring 16mm in diameter and 25mm in height. Operates from -55°C to 105°C with an 8000-hour lifespan. RoHS compliant.
PackageRadial
Capacitance680uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UPW1J681MHD1TN technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 94mR |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Impedance | 50mR |
| Lead Pitch | 7.5mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.62A |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW1J681MHD1TN Datasheet
Download the complete datasheet for Nichicon UPW1J681MHD1TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

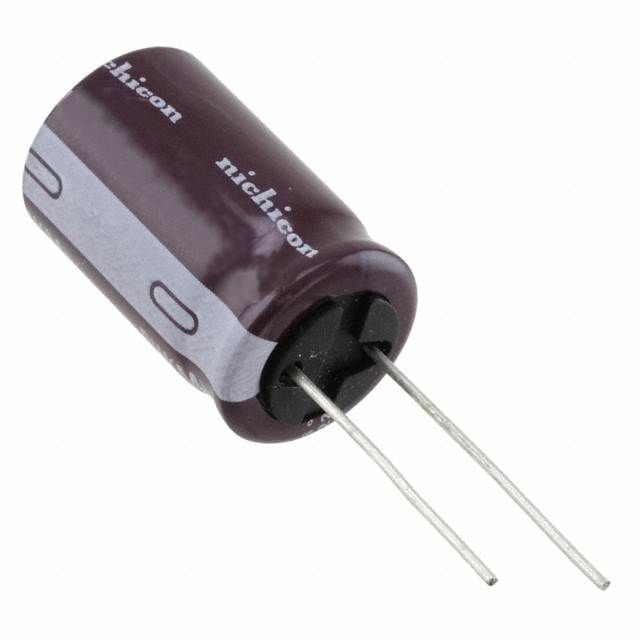

Product Images
