220µF, 35V polarized aluminum electrolytic capacitor featuring radial leaded construction for through-hole mounting. Offers 20% tolerance, 170mΩ ESR, and 90mΩ impedance. Operates across a -55°C to 105°C temperature range with a 5000-hour life expectancy and 755mA ripple current. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UPW1V221MPD1TD technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 170mR |
| Height | 12.5mm |
| Impedance | 90mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Length | 12.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 755mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW1V221MPD1TD Datasheet
Download the complete datasheet for Nichicon UPW1V221MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

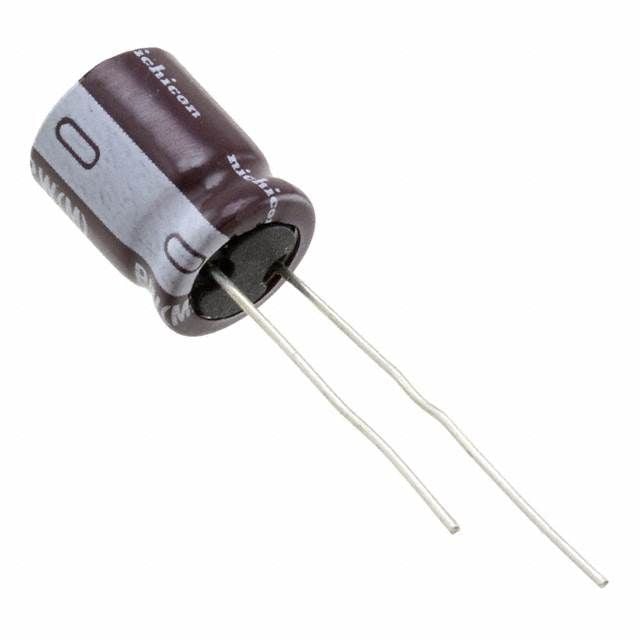

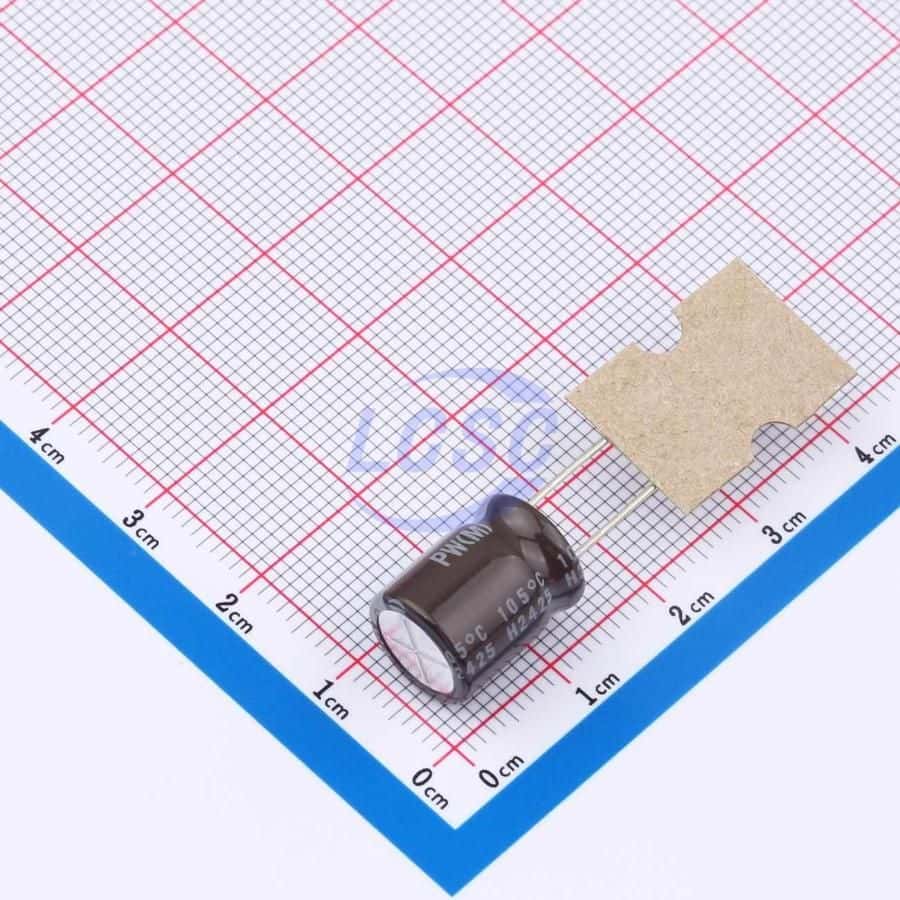

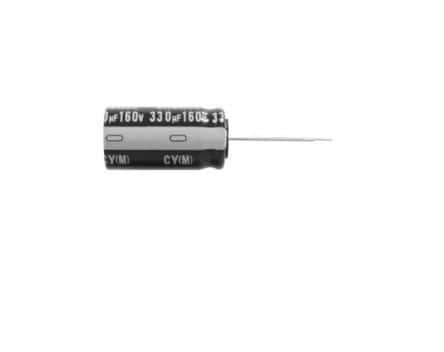

Product Images
