Aluminum electrolytic capacitor with 15µF capacitance and 100V DC rating. Features 20% tolerance, 1.66Ω ESR, and 180mA ripple current. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 8mm diameter. Operates from -55°C to 105°C with a 3000-hour lifespan.
PackageRadial
Voltage100V
Capacitance15uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPW2A150MPD technical specifications.
General
Capacitance
15uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
1.66R
Height
11.5mm
Height - Seated (Max)
0.453inch
Impedance
830mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Leakage Current
45uA
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
180mA
RoHS Compliant
Yes
Series
PW
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UPW2A150MPD Datasheet
Download the complete datasheet for Nichicon UPW2A150MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

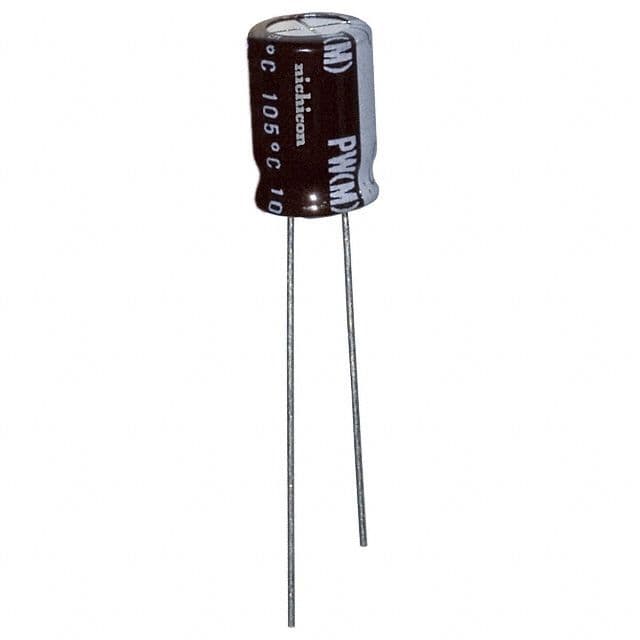

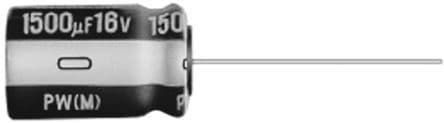

Product Images
