Aluminum electrolytic capacitor with 680µF capacitance and 100V DC rating. Features a 20% tolerance, 128mΩ ESR, and 1.41A ripple current. Designed for through-hole mounting with a 7.5mm lead pitch and radial termination. Operates from -55°C to 105°C with an 8000-hour lifespan. Dimensions are 16mm diameter and 35.5mm height.
PackageRadial
Voltage100V
Capacitance680uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UPW2A681MHD technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 128mR |
| Height | 35.5mm |
| Height - Seated (Max) | 1.398inch |
| Impedance | 64mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 2.04mA |
| Length | 35.5mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.41A |
| Ripple Current (AC) | 1.41A |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW2A681MHD Datasheet
Download the complete datasheet for Nichicon UPW2A681MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

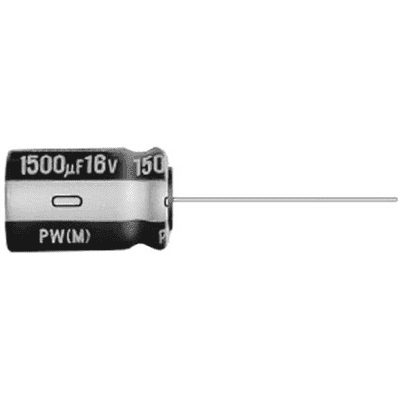

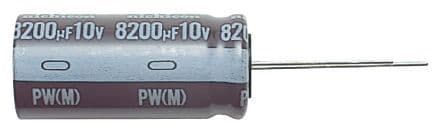

Product Images
