100µF, 160V radial aluminum electrolytic capacitor with 20% tolerance. Features a 16mm diameter, 25mm height, and 7.5mm lead pitch. Offers 330mA ripple current, 740µA leakage current, and an 8000-hour life at 105°C. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage160V
Capacitance100uF
Voltage Rating160V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UPW2C101MHD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UPW2C101MHD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 740uA |
| Length | 25mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 330mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 160V |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW2C101MHD Datasheet
Download the complete datasheet for Nichicon UPW2C101MHD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

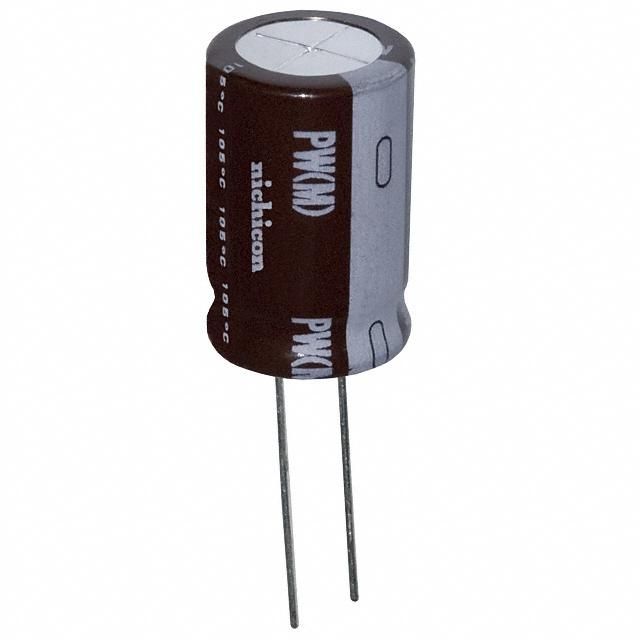

Product Images
