Aluminum electrolytic capacitor, 220µF capacitance, 350V DC rated voltage, 20% tolerance. Features a 25mm diameter, 50mm height, and 12.5mm lead pitch for radial mounting. Offers 550mA ripple current, 3.18mA leakage current, and an 8000-hour life at 105°C maximum operating temperature. RoHS compliant and lead-free.
PackageRadial
Voltage350V
Capacitance220uF
Voltage Rating350V
Quick Jump:
Technical Specifications
Nichicon UPW2V221MRD technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 50mm |
| Height - Seated (Max) | 1.969inch |
| Lead Diameter | 1mm |
| Lead Free | Lead Free |
| Lead Pitch | 12.5mm |
| Leakage Current | 3.18mA |
| Length | 50mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 140 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 550mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 350V |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW2V221MRD Datasheet
Download the complete datasheet for Nichicon UPW2V221MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

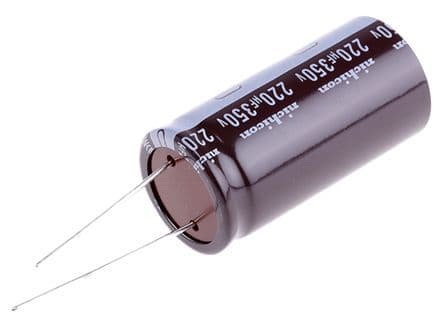

Product Images
