Aluminum electrolytic capacitor, 1µF capacitance, 450V DC rated voltage, 20% tolerance. Features a radial construction with a 10mm diameter and 12.5mm height, a 5mm lead pitch, and 0.6mm lead diameter. Offers 5000 hours of life at 105°C maximum operating temperature, with 18mA ripple current and 85µA leakage current. Through-hole mount, lead-free, RoHS compliant, and supplied in bulk packaging.
PackageRadial
Voltage450V
Capacitance1uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon UPW2W010MPD technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 12.5mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 85uA |
| Length | 12.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 18mA |
| RoHS Compliant | Yes |
| Series | PW |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPW2W010MPD Datasheet
Download the complete datasheet for Nichicon UPW2W010MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

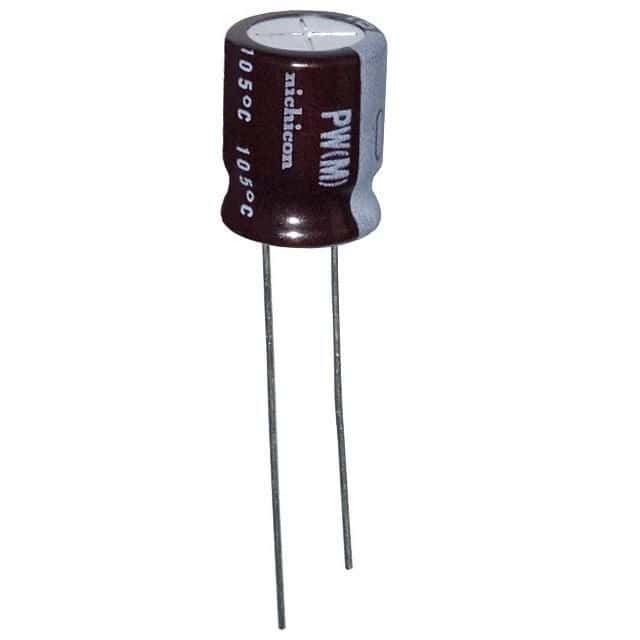

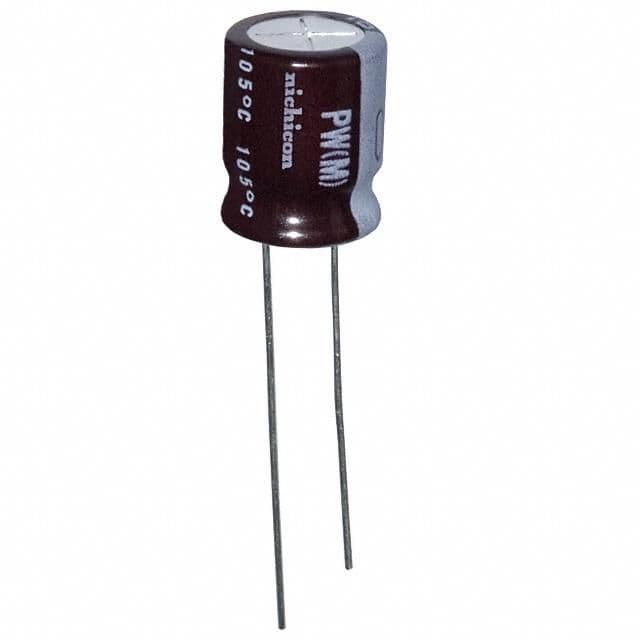

Product Images
