Aluminum electrolytic capacitor with 150µF capacitance and 250V DC rated voltage. Features 20% tolerance, 920mA ripple current, and a maximum operating temperature of 105°C. Radial package with 0.197-inch lead pitch, 0.8mm lead diameter, and 2000-hour life expectancy. Designed for through-hole PCB mounting.
PackageRadial
Voltage250V
Capacitance150uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UPZ2E151MNY9 technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Height | 31.5mm |
| Height - Seated (Max) | 1.654inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.197inch |
| Lead/Base Style | Straight |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 920mA |
| Series | PZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPZ2E151MNY9 Datasheet
Download the complete datasheet for Nichicon UPZ2E151MNY9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

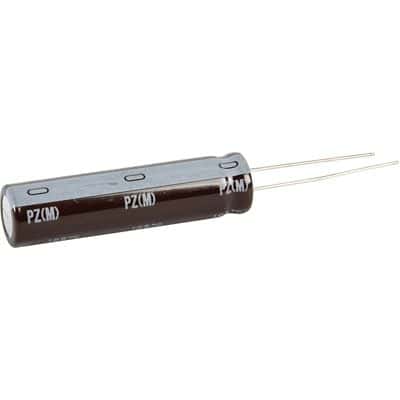

Product Images
