Aluminum electrolytic capacitor with 82µF capacitance and 250V DC rated voltage. Features 20% tolerance, 610mA ripple current, and a maximum operating temperature of 105°C. Radial package with 10mm diameter and 40mm height, suitable for through-hole PCB mounting. Leakage current is 920µA, with a lifespan of 2000 hours.
PackageRadial
Voltage250V
Capacitance82uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UPZ2E820MND9 technical specifications.
General
| Capacitance | 82uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Features | General Purpose |
| Height | 40mm |
| Height - Seated (Max) | 0.394inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 920uA |
| Length | 40mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 300 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPZ2E820MND9 Datasheet
Download the complete datasheet for Nichicon UPZ2E820MND9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

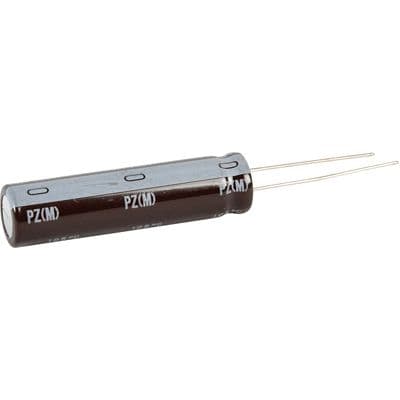

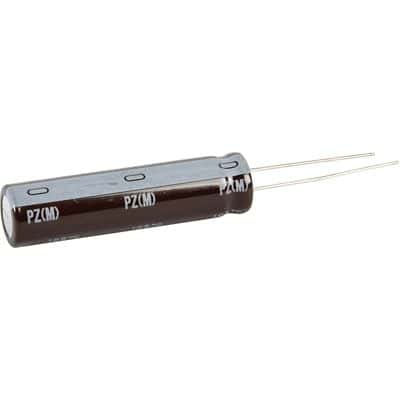

Product Images
