Aluminum electrolytic capacitor with 27µF capacitance and 400V DC rated voltage. Features 20% tolerance, 255mA ripple current, and 532µA leakage current. Designed for through-hole PCB mounting with radial leads, operating from -25°C to 105°C with a 2000-hour life rating. Dimensions are 8mm diameter by 50mm length.
PackageRadial
Voltage400V
Capacitance27uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon UPZ2G270MND9 technical specifications.
General
| Capacitance | 27uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Height | 31.5mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 0.138inch |
| Lead/Base Style | Straight |
| Leakage Current | 532uA |
| Length | 50mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 300 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 255mA |
| Series | PZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UPZ2G270MND9 Datasheet
Download the complete datasheet for Nichicon UPZ2G270MND9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

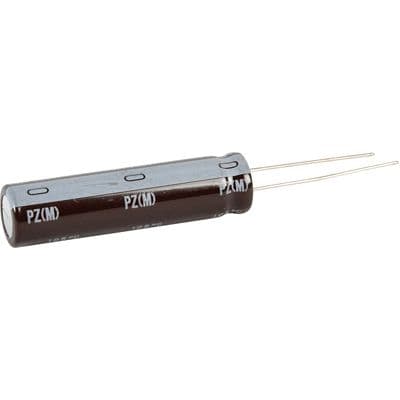

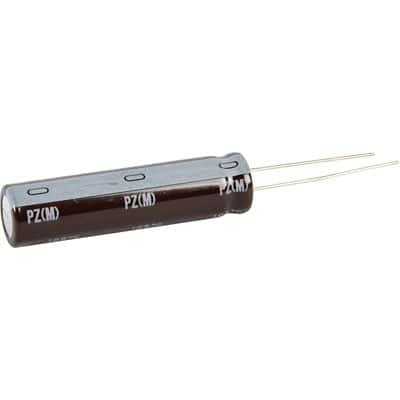

Product Images
