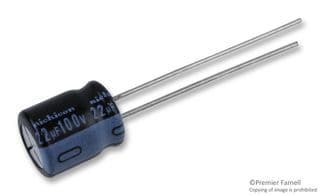

Nichicon's URS2A220MPD1TD is a 22uF aluminum electrolytic capacitor with a 100V voltage rating, operating within a -40°C to 85°C temperature range. It features a radial package with a 3.5mm lead pitch and a 9mm height, suitable for through-hole mounting. This component is RoHS compliant and available in tape and reel packaging with a quantity of 1000 per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon URS2A220MPD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon URS2A220MPD1TD technical specifications.
| Capacitance | 22uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Height | 9mm |
| Lead Pitch | 3.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | URS |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| RoHS | Compliant |
