100µF, 100V radial aluminum electrolytic capacitor with 20% tolerance. Features a 5mm lead pitch, 0.6mm lead diameter, and a 12.5mm x 12.5mm radial package. Offers a ripple current of 230mA, leakage current of 300µA, and a rated life of 2000 hours at 105°C. Operates from -55°C to 105°C with a dissipation factor of 0.08%. RoHS compliant and lead-free.
PackageRadial
Capacitance100uF
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon URY2A101MHD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dissipation Factor | 0.08% |
| Height | 12.5mm |
| Height - Seated (Max) | 0.551inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 300uA |
| Length | 12.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 230mA |
| RoHS Compliant | Yes |
| Series | RY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URY2A101MHD Datasheet
Download the complete datasheet for Nichicon URY2A101MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

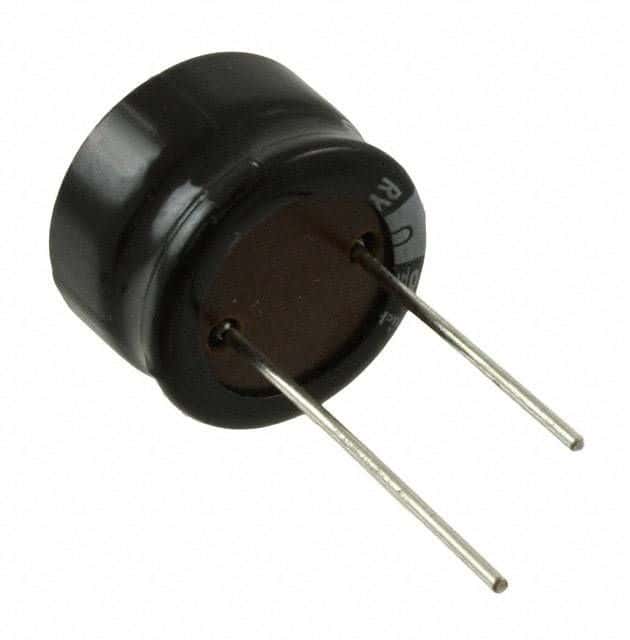

Product Images
