Technical Specifications
Nichicon URZ1E472MHD1TN technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Height - Seated (Max) | 1.063inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 0.295inch |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 1.47A |
| RoHS Compliant | Yes |
| Series | URZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon URZ1E472MHD1TN Datasheet
Download the complete datasheet for Nichicon URZ1E472MHD1TN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

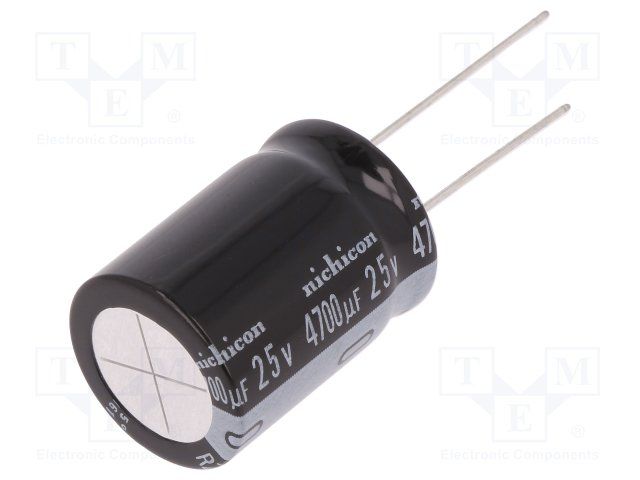

Product Images
