Aluminum electrolytic capacitor, 100µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features a 78mA ripple current, 6.3µA leakage current, and a dissipation factor of 0.24%. Designed for general purpose applications with a radial through-hole mounting package measuring 5mm in diameter and 7mm in height. Operates within a temperature range of -40°C to 85°C with a rated life of 2000 hours.
PackageRadial
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon USR0J101MDD technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Dielectric Material
Aluminium
Dissipation Factor
0.24%
Features
General Purpose
Height
7mm
Height - Seated (Max)
0.315inch
Lead Diameter
0.45mm
Lead Pitch
2mm
Leakage Current
6.3uA
Length
7mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
78mA
RoHS Compliant
Yes
Series
SR
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon USR0J101MDD Datasheet
Download the complete datasheet for Nichicon USR0J101MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

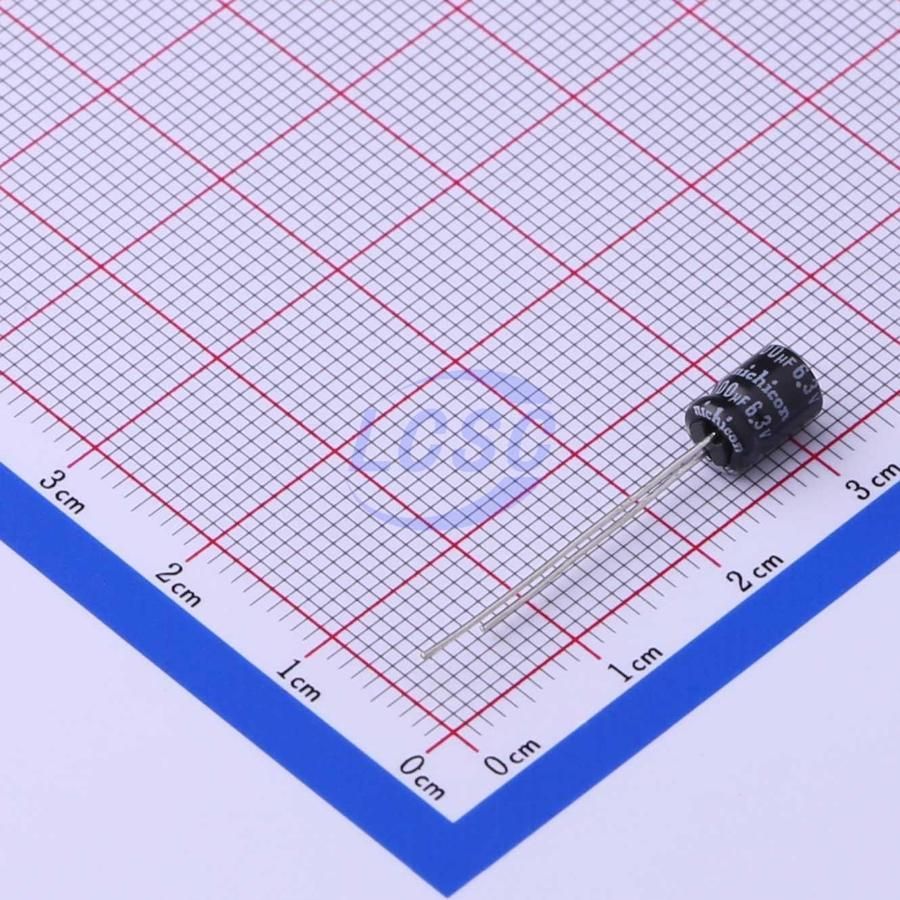

Product Images
