Standard Aluminum Electrolytic Capacitor, 220µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 230mA ripple current, 440mΩ impedance, and 3µA leakage current. Operates from -55°C to 105°C with a 2000-hour life expectancy. Cylindrical construction with SMD/SMT termination, measuring 6.3mm diameter and 5.8mm height. Packaged in tape and reel.
PackageRadial
Voltage6.3V
Capacitance220uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UUD0J221MCL1GS technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.26%
Height
5.8mm
Impedance
440mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
2.2mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD0J221MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD0J221MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

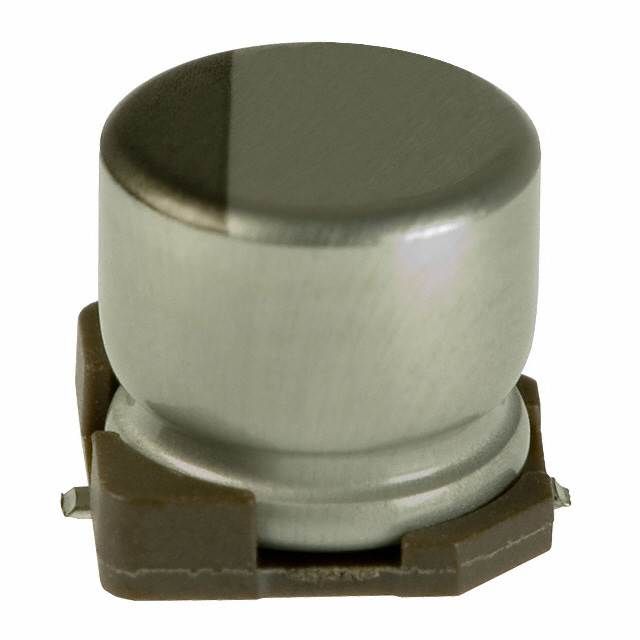

Product Images
