Aluminum electrolytic capacitor with 100µF capacitance and 10V DC voltage rating. Features 20% tolerance, 230mA ripple current, and 440mΩ impedance. Operates from -55°C to 105°C with a 2000-hour life expectancy. Supplied in a 6.3 x 5.8mm radial package with SMD/SMT termination, presented on tape and reel.
PackageRadial
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UUD1A101MCL1GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
5.8mm
Impedance
440mR
Lead Free
Lead Free
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1A101MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1A101MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

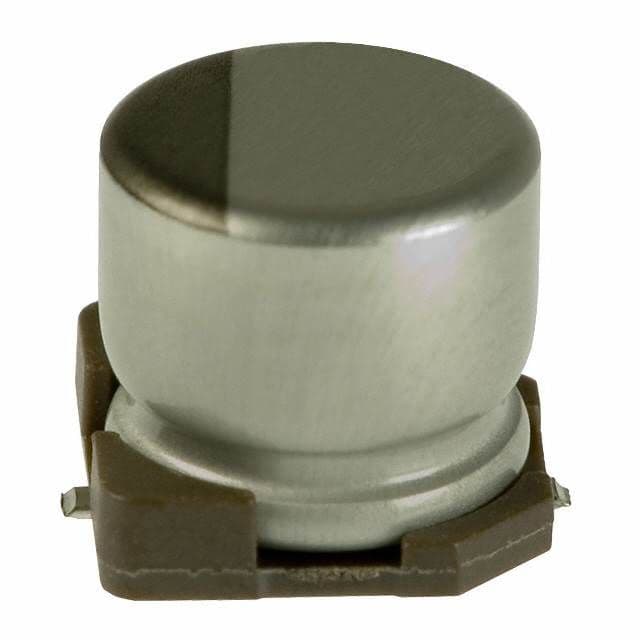

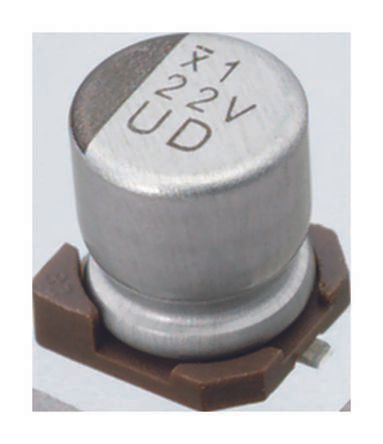

Product Images
