Standard aluminum electrolytic capacitor, 470µF capacitance, 10V DC rated voltage, with 20% tolerance. Features a cylindrical construction, 8mm diameter, 10mm height, and 3.1mm lead pitch. Offers 450mA ripple current, 170mΩ impedance, and a dissipation factor of 0.24%. Operates from -55°C to 105°C with a 5000-hour life expectancy. This polar capacitor utilizes SMD/SMT termination and is supplied in tape and reel packaging.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UUD1A471MNL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.24%
Height
10mm
Height - Seated (Max)
0.394inch
Impedance
170mR
Lead Diameter
1.1mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
3uA
Length
10mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
450mA
Ripple Current (AC)
450mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1A471MNL1GS Datasheet
Download the complete datasheet for Nichicon UUD1A471MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

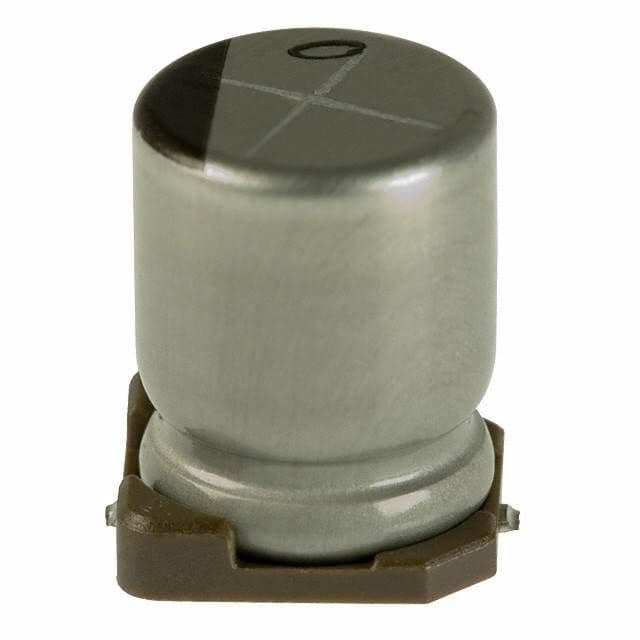

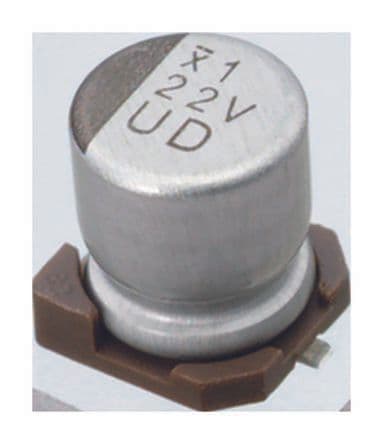

Product Images
