100µF, 16V polarized aluminum electrolytic capacitor with 20% tolerance. Features a cylindrical construction, 6.3mm diameter, and 5.8mm height. Surface mountable with a 2.2mm lead pitch, it offers a dissipation factor of 0.2% and an impedance of 440mΩ. Operating temperature range is -55°C to 105°C, with a rated ripple current of 230mA and a leakage current of 3µA. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UUD1C101MCL1GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
5.8mm
Height - Seated (Max)
0.228inch
Impedance
440mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
2.2mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1C101MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1C101MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

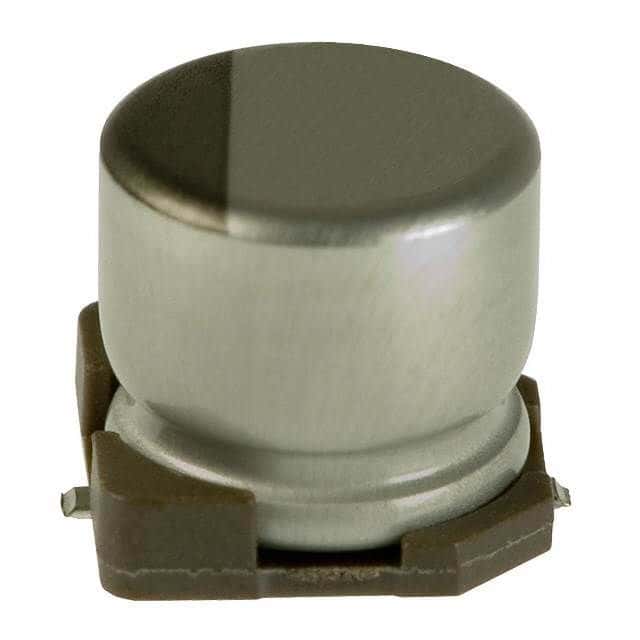

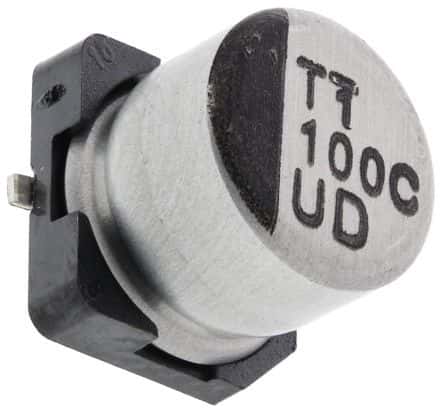

Product Images
