Polarized aluminum electrolytic capacitor, 47µF capacitance, 50V voltage rating. Features 20% tolerance, 105°C maximum operating temperature, and 2000-hour life. Surface mount termination with a 6.3mm diameter and 7.7mm height. Dissipation factor of 0.12% and ripple current of 185mA.
PackageRadial
Voltage50V
Capacitance47uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UUD1H470MCL1GS technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
Height
7.7mm
Impedance
680mR
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
2.2mm
Leakage Current
3uA
Length
7.7mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Package Quantity
900
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
185mA
Ripple Current (AC)
185mA
RoHS Compliant
Yes
Series
UD
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUD1H470MCL1GS Datasheet
Download the complete datasheet for Nichicon UUD1H470MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

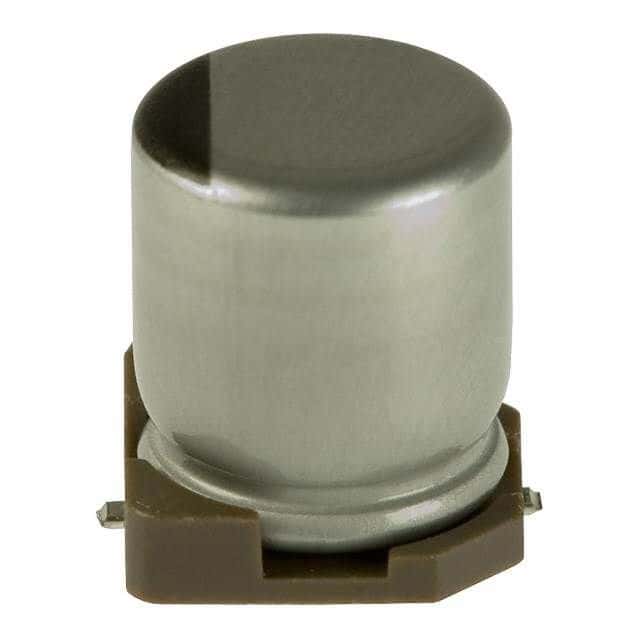

Product Images
