PackageRadial
Capacitance2.2mF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UUJ1C222MNQ1MS technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Leakage Current
4uA
Length
16.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
125
Packaging
Tape and Reel
Ripple Current
930mA
RoHS Compliant
Yes
Series
UUJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon UUJ1C222MNQ1MS Datasheet
Download the complete datasheet for Nichicon UUJ1C222MNQ1MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

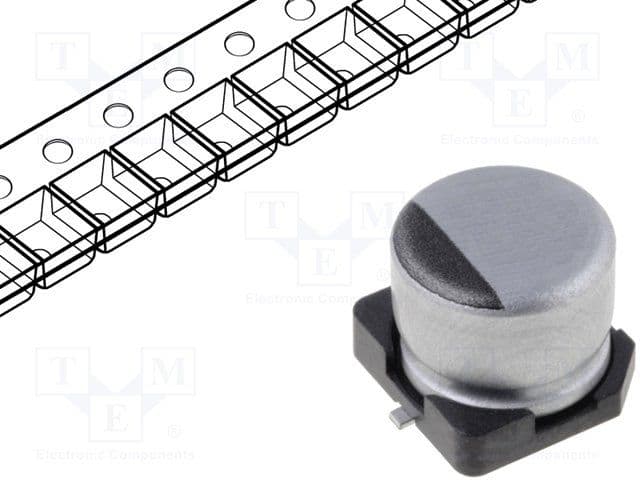

Product Images
