Aluminum electrolytic capacitor, 220µF capacitance, 10V DC rated voltage, 20% tolerance. Features a 175mA ripple current rating, 2000-hour life at 85°C, and a dissipation factor of 0.24%. Surface mountable with a cylindrical construction, 8mm diameter, and 6.2mm height. Supplied in tape and reel packaging.
PackageRadial
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UUR1A221MCL1GS technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.24% |
| Features | General Purpose |
| Height | 6.2mm |
| Height - Seated (Max) | 0.256inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 2.3mm |
| Leakage Current | 66uA |
| Length | 6.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 175mA |
| Ripple Current (AC) | 175mA |
| RoHS Compliant | Yes |
| Series | UR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UUR1A221MCL1GS Datasheet
Download the complete datasheet for Nichicon UUR1A221MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

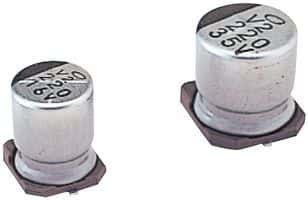

Product Images
