Standard aluminum electrolytic capacitor, 10µF capacitance, 16V DC rated voltage, 20% tolerance. Features a 4mm diameter, 5.8mm height SMD/SMT cylindrical construction with a 1mm lead pitch. Offers 2000 hours of life at 105°C, 18mA ripple current, and 3µA leakage current. Surface mountable with lead-free termination.
PackageSMD/SMT
Voltage16V
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UUT1C100MCL1GS technical specifications.
General
Capacitance
10uF
Package/Case
SMD/SMT
Construction
Cylindrical
Diameter
4mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Features
General Purpose
Height
5.8mm
Height - Seated (Max)
0.24inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
1mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
18mA
Ripple Current (AC)
18mA
RoHS Compliant
Yes
Series
UT
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Nichicon UUT1C100MCL1GS Datasheet
Download the complete datasheet for Nichicon UUT1C100MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

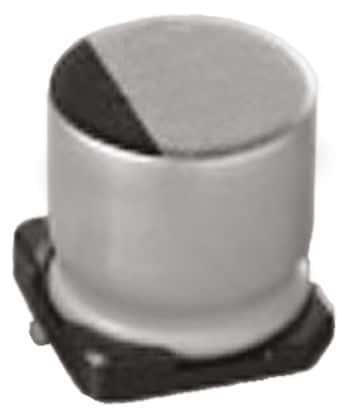

Product Images
